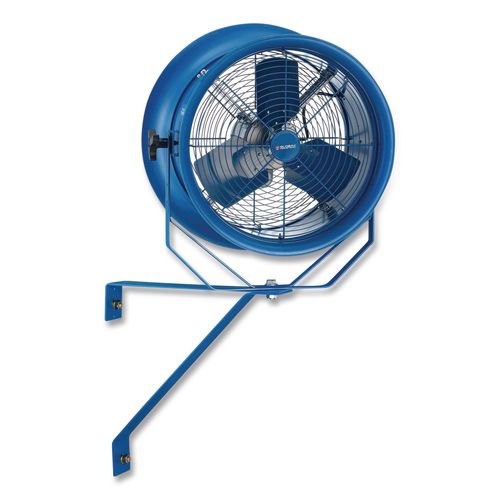

High Velocity Fan, Wall and Column Mount, 18", 1 Speed, Blue
Buy 2 Reams Get a Macy's or Home Depot Gift Card - Learn More
Item:
GBE293147
- Built with polyethylene housing that's corrosion- and impact-resistant.
- Includes a steel wire fan guard and TEAO motor for OSHA-compliant safe use.
- Equipped with three galvanized aluminum blades for long-term performance.
- Yoke mount and hardware included for easy installation on walls or columns.
The item number entered is not available for purchase.
Also Available In
- Built with polyethylene housing that's corrosion- and impact-resistant.
- Includes a steel wire fan guard and TEAO motor for OSHA-compliant safe use.
- Equipped with three galvanized aluminum blades for long-term performance.
- Yoke mount and hardware included for easy installation on walls or columns.
- Includes a 12-ft, three-prong power cord to minimize the need for extension cords.
Designed to project large amounts of air long distances, the High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drove TEAO (Totally Enclosed Air Over) motor with three galvanized aluminum fan blades. It comes with a yoke mount connected to a mounting assembly for installation on a wall or column.
Manufacturer:
Global Industrial®
Catalog:
Catalog page:
Technical Specs:
Global Product Type
Industrial Wall Mount Fans
Fan Type
Industrial
Fan Head Size
18"
Oscillates
No
Number of Speeds
1
Color(s)
Blue
Height (Max)
27.2"
Material(s)
High Impact Polyethylene
Voltage
115 V/208-240 V
Amps
4.9 A/2.6 A
Horsepower
1/2 hp
Housing Material
Polyethylene
Diameter
18"
Cord Length
12 ft
Blade Material
Galvanized Aluminum
Blade Color
Silver
Air Flow (CFM)
7,700 CFM
Number of Blades
3
Built-In Light
No
Guard Color
Blue
Guard Material
Powder Coated Steel
Housing Color
Blue
Housing Finish
Polyethylene
Motor Phase
Single
Motor Size
1/8 hp
Motor Type
Totally Enclosed Air Over (TEAO)
Noise Rating (dBA)
73.4 dBA
AC Voltage
115 V
Fan Width
18"
Switch
Rotary Dial
Style
Industrial
Fan Speed (RPM)
1,720 RPM
Light Kit Included
No
CFM/Watts
520 W
Maximum Operating Speed (RPM)
1,720 RPM
Width
25"
Depth
15.75"
Product Biodegradability Indicator
N
Product Compostability Indicator
N
Pre-Consumer Recycled Content Percent
0%
Post-Consumer Recycled Content Percent
0%
Total Recycled Content Percent
0%
Warranty:
Manufacturer's limited one-year warranty.
