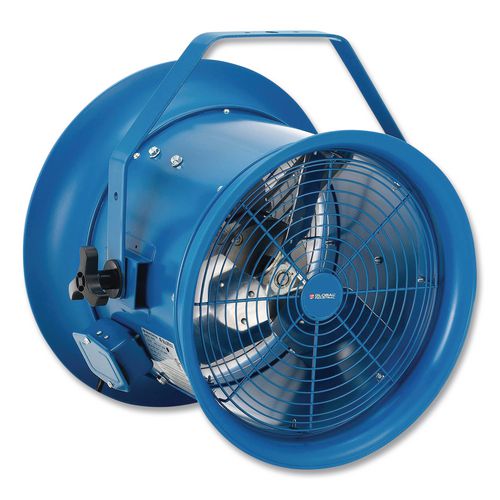

High Velocity Drum Fan with Yoke Mount, 14", 1 Speed, Blue
Buy 2 Reams Get a Macy's or Home Depot Gift Card - Learn More
Item:
GBE293092
- Ideal for industrial air circulation.
- Can be used free-standing or mounted on a column or wall with included yoke bracket.
- Equipped with a single-speed direct-drive 1/3 hp TEAO motor for reliable performance.
- Features a polyethylene and metal housing for impact and corrosion resistance.
The item number entered is not available for purchase.
Also Available In
- Ideal for industrial air circulation.
- Can be used free-standing or mounted on a column or wall with included yoke bracket.
- Equipped with a single-speed direct-drive 1/3 hp TEAO motor for reliable performance.
- Features a polyethylene and metal housing for impact and corrosion resistance.
- Comes with three galvanized aluminum blades for efficient airflow.
- Includes a steel wire guard to protect the fan blades and enhance operator safety.
- 12-ft, three-prong power cord reduces reliance on extension cords.
Designed to project large amounts of air long distances, High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drive TEAO (Totally Enclosed Air Over) 1/3 hp motor with three galvanized aluminum fan blades. It comes with a yoke mount bracket that allows the unit to be used freestanding for portability or mounted on a wall or column for more permanent placement. Additional kits are available separately for more mounting options.
Manufacturer:
Global Industrial®
Catalog:
Catalog page:
Technical Specs:
Global Product Type
Industrial Floor Fans
Fan Type
Industrial
Fan Head Size
14"
Oscillates
No
Number of Speeds
1
Color(s)
Blue
Height (Max)
22.43"
Material(s)
Metal/Polyethylene
Voltage
115 V/208-240 V
Amps
4 A/2 A
Maximum Room Size
3,000 to 4,500 sq ft
Horsepower
1/3 hp
Housing Material
High-Impact Polyethylene
Diameter
14"
Cord Length
12 ft
Blade Material
Galvanized Aluminum
Blade Color
Silver
Air Flow (CFM)
6,800 CFM
Number of Blades
3
Built-In Light
No
Guard Color
Black
Guard Material
Steel
Housing Color
Blue
Housing Finish
Polyethylene
Motor Phase
Single
Motor Size
1/3 hp
Motor Type
Totally Enclosed Air Over
Noise Rating (dBA)
77.6 dBA
AC Voltage
115 to 120 V
Fan Width
14"
Switch
Built-In On/Off Rocker
Style
Industrial
Fan Speed (RPM)
1,720 RPM
Light Kit Included
No
CFM/Watts
400 W
Maximum Operating Speed (RPM)
1,720 RPM
Width
21.19"
Depth
15.43"
Length
14"
Product Biodegradability Indicator
N
Product Compostability Indicator
N
Compliance Standards
cUL,UL Listed
Pre-Consumer Recycled Content Percent
0%
Post-Consumer Recycled Content Percent
0%
Total Recycled Content Percent
0%
Warranty:
Manufacturer's limited one-year warranty.
